Consider an ATM. It starts in an Idle state. When a user inserts a card, it moves to the Card Entered state. After a correct PIN is provided, it transitions to the Authenticated state. Each action triggers a change in the machine's condition.
State Transition Testing is the formal method used to verify such systems. It's a black-box technique designed to validate the behavior of finite-state machines by checking how the system moves from one state to another in response to specific events or inputs.
The significance of this method is its ability to systematically confirm software reliability, making it an essential tool for engineering teams aiming to improve system quality through structured testing.
What is State Transition Testing?
State Transition Testing is a black-box software testing technique. It focuses on how a system changes between different states in response to specific events or inputs. It is particularly valuable for systems where the output depends not only on the current input but also on the system's previous state.
To understand this method, you need to know its core concepts:
States: These are distinct conditions or points in which a system can exist at any given moment. For an ATM, states could be 'Idle', 'Card Inserted', 'PIN Entered', and 'Transaction Processing'.
Events: These are the inputs or triggers that cause the system to move from one state to another. An event could be a user action, like pressing a button, or a system event, like a timeout.
Transitions: This is the movement between two states, which is prompted by an event. For example, entering a correct PIN (event) causes a transition from the 'PIN Entered' state to the 'Authenticated' state.
Its role in quality assurance is to confirm that the system behaves as expected under all possible conditions. By methodically testing each transition, teams can prevent errors that might otherwise go unnoticed, ensuring reliable system operation.
Why is State Transition Testing Important?
This testing method is vital for applications with intricate behaviors. Its value is most apparent in systems where the output is determined by both the current inputs and the history of previous states.
Systems with Complex Behaviors
Many applications, from login authentication systems to e-commerce shopping carts and embedded controllers in devices, are stateful. The system's response to an action, like clicking "Add to Cart," depends on its current state (e.g., whether the user is logged in or if the item is already in the cart). This technique provides a structured way to test these dependencies.
Error Detection
It excels at identifying issues that arise from incorrect state changes. These defects can include:
The system entering an unexpected or undefined state.
The system failing to transition when a valid event occurs.
The system transitioning to the wrong state after an event.
Industry surveys by the IEEE Software Engineering Body of Knowledge indicate that teams utilizing state transition testing practices experience a significant reduction in state-related production bugs. This improvement is attributed to the systematic and early detection of invalid or missing transitions during the validation process.
Test Coverage
The method directly impacts test coverage by demanding a systematic examination of the system's states and transitions. This ensures that test cases cover not just the "happy paths" but also alternative and error paths. Achieving high state and transition coverage gives you confidence that the application will not fail under unusual sequences of events.
Key Concepts in State Transition Testing
To apply this technique effectively, you must first understand the models used to represent system behavior. The primary tools for this are state diagrams and Finite State Machines.

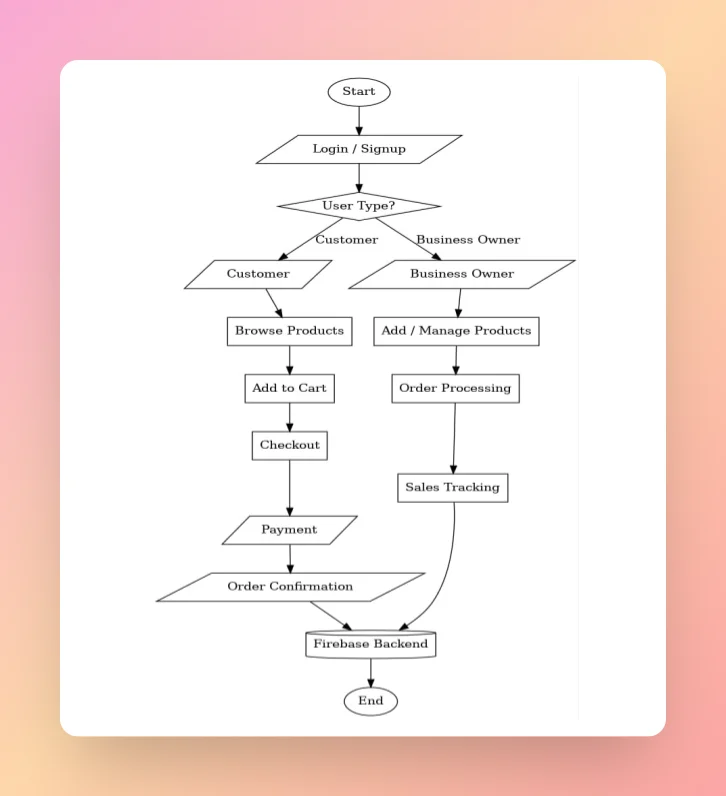

State Diagram
A state diagram is a visual representation of a system's behavior. It uses nodes to represent states and directed arrows to show transitions between them.
Definition: A state diagram graphically shows the finite number of states a system can be in and the transitions between those states.
Role: It acts as a blueprint for testing. By visualizing the system's flow, you can identify all possible paths that need validation. This visual aid simplifies the creation of effective test cases and helps teams communicate about the system's intended behavior.
Example: A simple light switch can be modeled with two states ('On', 'Off') and one event ('Flip Switch'). The diagram would show two arrows, one from 'Off' to 'On' and one from 'On' to 'Off', both labeled 'Flip Switch'.
Finite State Machine (FSM)
An FSM is an abstract model that describes the behavior of a system. It is defined by a list of its states, its initial state, and the conditions for each transition.
Explanation: An FSM is a computational model that can be in exactly one of a finite number of states at any given time. The FSM can change from one state to another in response to some external inputs; the change from one state to another is called a transition. The connection to State Transition Testing is direct. The FSM provides the formal model, and the testing technique is the practical application used to verify that the physical system correctly implements that model.
Transition Path and Test Coverage
A transition path is a sequence of states and events that a system follows during its operation. Understanding these paths is fundamental to creating test cases, which are designed to follow specific paths to verify that each transition works correctly.
However, achieving complete path coverage is often impractical for complex systems. This challenge is due to a problem known as state explosion, where the number of possible states and transitions grows exponentially as more features or variables are added. Attempting to test every conceivable path would consume enormous time and resources.
Path Prioritization
To manage this complexity, teams use risk-based path prioritization. This strategy involves focusing testing efforts on the paths that matter most. Criticality can be determined by several factors:
High-Frequency Paths: Test the sequences of operations that users perform most often.
High-Risk Paths: Prioritize paths that, if they failed, would cause significant damage, such as data corruption, security vulnerabilities, or major functional failure.
Paths Covering New or Modified Features: Concentrate on validating new functionality or areas that have recently changed.
Error and Exception Paths: Verify that the system handles invalid inputs and unexpected errors gracefully, transitioning to appropriate error states or recovery routines.
Designing Test Cases for State Transition Testing
A structured approach to test case design is necessary to validate system behavior thoroughly. This process moves from a high-point model to concrete, executable test scenarios.
Test Design Approach
The primary method involves using the state diagram or FSM as a guide. The goal is to design test cases that exercise every state and transition.
Identify Paths: Begin by listing all unique transition paths in the state diagram. A path is a sequence of states and transitions.
Prioritize Paths: For complex systems, it's often not feasible to test every possible path. Prioritize testing efforts based on risk and importance. Critical paths, such as user login or payment processing, require the most attention. Consider these criteria for prioritization:
Security Impact: Transitions that handle authentication, authorization, or sensitive data must be prioritized. A failure here could lead to a significant security breach.
User Frequency: Paths that users follow most often should be tested thoroughly, as they have the biggest impact on the user experience.
Operational Impact: Focus on paths critical to business operations. For example, in an e-commerce application, the checkout and payment process is vital.
Past Bug History: Areas of the system that have historically shown more defects are more likely to have new ones. Give these paths extra scrutiny.
Create Test Cases: For each prioritized path, write a test case that provides the sequence of inputs (events) needed to trigger the transitions and specifies the expected outcomes (the final state and any outputs).
Test Scenarios
Test scenarios should reflect real-world usage. You should define sequences of actions that a user might perform. For an online banking application, a scenario could be:
User starts at the 'Logged Out' state.
Event: User enters correct credentials.
Transition to 'Logged In' state.
Event: User selects 'View Balance'.
Transition to 'Displaying Balance' state.
Event: User clicks 'Log Out'.
Transition back to 'Logged Out' state.
Test Suite Coverage
You should assemble individual test cases into a logical test suite. A good test suite provides a specified amount of coverage, such as:
All-States Coverage: Ensures every state in the diagram is visited at least once.
All-Transitions Coverage: A more rigorous approach that ensures every single transition is triggered at least once.
All-Paths Coverage: The most exhaustive approach, aiming to test every possible path through the state diagram. This is often impractical due to the "state explosion" problem where the number of paths becomes too large to manage.
Example: ATM PIN Entry
Here is a simple example of test cases for an ATM PIN entry screen with a three-try limit. Notice how the state changes to reflect the number of failed attempts.
Test Case ID | Initial State | Event (Input) | Expected Next State |
TC-PIN-01 | Ready for PIN | Correct PIN entered | Authenticated |
TC-PIN-02 | Ready for PIN | Incorrect PIN (1st try) | One Attempt Used |
TC-PIN-03 | One Attempt Used | Incorrect PIN (2nd try) | Two Attempts Used |
TC-PIN-04 | Two Attempts Used | Incorrect PIN (3rd try) | Card Retained |
TC-PIN-05 | Ready for PIN | 'Cancel' button pressed | Idle |
TC-PIN-06 | One Attempt Used | Correct PIN entered | Authenticated |
Steps to Perform State Transition Testing
Following a systematic process ensures that your testing is repeatable and methodical. Here is a step-by-step guide to conducting this type of testing.
Identify the System States: First, you must understand the system and define all its possible states. This involves analyzing requirements and specifications to list every condition the software can be in.
Construct the State Diagram: With the states defined, map them out visually. Create a state diagram that shows each state as a node and uses arrows to represent the transitions between them. Label each transition with the event that causes it.
Define Transition Paths: From the state diagram, create a list of transition paths to test. You might start with testing each transition individually and then move to more complex sequences of transitions.
Design Test Cases: Derive specific test cases from the transition paths. Each test case should detail the prerequisite state, the action (event) to perform, and the expected resulting state. This is where you translate the abstract model into concrete testing steps.
Execute Tests: Run the test cases on the application. This can be done manually or through automation. As you execute each step, provide the required input and observe the system's reaction.
Here is a simple code snippet in JavaScript representing a state machine for a traffic light that could be tested:
JavaScript
class TrafficLight { |
Validate and Verify the Results: After executing each test, compare the actual outcome with the expected outcome defined in your test case. If the system does not transition to the correct state, you have found a defect.
Benefits of State Transition Testing
Incorporating this technique into your testing strategy offers several distinct advantages, contributing to higher-quality software.
Improved Test Coverage: It provides a logical model for test coverage. By ensuring that all states and transitions are tested, you can be more confident that the system behaves correctly under a wide variety of circumstances. This structured approach helps find gaps that might be missed by less formal testing methods.
Error Detection: This method is highly effective at finding defects related to system logic and state management. It helps identify subtle bugs, such as failing to handle an event in a particular state or entering a forbidden state. It is excellent for testing edge cases that involve unusual sequences of events.
Automation in Testing: State models are well-suited for test automation. Research indicates that model-based testing, which includes State Transition Testing, can accelerate test script generation. Tools can parse a state diagram or FSM and automatically generate and execute test cases, saving significant time and effort in regression testing. Some popular tools that support this type of automation include ModelJUnit, GraphWalker, and Spec Explorer.
Challenges in State Transition Testing
While powerful, the technique is not without its difficulties, particularly when applied to large and intricate systems.
Complexity in Large Systems: As the number of states and events in a system grows, the state diagram becomes increasingly complex. It can be difficult to create, maintain, and understand a diagram with hundreds of states and thousands of transitions. Keeping the model accurate becomes a significant task.
State Explosion Problem: This is the primary challenge. The number of possible paths through a state machine can grow exponentially with the number of states. Testing every possible path becomes computationally infeasible. Teams must use risk-based analysis to prioritize which paths to test.
Tool Support: Manually managing State Transition Testing for a large system is impractical. Effective execution relies on specialized tools that can help visualize state models, generate test cases, and automate execution. The availability and learning curve of these tools can be a barrier for some teams.
Best Practices in State Transition Testing
To maximize the benefits and overcome the challenges, you should follow established best practices.
Use State Diagrams Effectively: Create an accurate and clear state diagram, as it is the foundation of your testing. Work with developers and business analysts to ensure the model correctly represents the intended system behavior. To prevent diagrams from becoming outdated, manage them in a version control system (like Git) alongside the application's code and use collaborative diagramming tools for real-time updates.
Prioritize Critical Transitions: You likely will not have the capacity to test every single path. Focus your efforts on high-risk transitions. These include paths connected to core functionalities, security, or areas where defects were found previously.
Combination with Other Testing Techniques: This method works best when paired with other black-box techniques. For instance, combine it with:
Boundary Value Analysis: To test the inputs that trigger events (e.g., minimum/maximum password length).
Decision Table Testing: To check complex business rules that might determine the outcome of a transition.
Common Mistakes to Avoid
When implementing State Transition Testing, teams sometimes make mistakes that reduce its effectiveness. Awareness of these common pitfalls can help you avoid them.
Overlooking Edge Cases: A frequent mistake is focusing testing on common user paths while missing less obvious transitions. For example, a tester might verify a successful login but not check what happens if a user cancels the process during authentication. These scenarios, along with timeouts and system errors, represent edge cases that are often a source of defects.
Incomplete State Diagrams: If the state diagram is incomplete or incorrect, your tests will be as well. Missing states or transitions mean that parts of the system will go untested, creating blind spots in your quality assurance process.
Lack of Automation: Relying solely on manual execution for state-based tests is inefficient, especially for regression testing. Not using automation misses a major opportunity to improve testing speed and reliability. Automated tests can run quickly and consistently check all modeled transitions after every code change.
Conclusion
State transition testing plays a distinct and important role in validating system behavior. It provides a structured method for testing applications where the sequence of operations matters. By modeling a system as a set of states and transitions, engineering teams can design tests that methodically check its logic.
The importance of this structured test design is clear. It leads to more thorough test coverage and helps find critical, state-related defects that other techniques might miss. We encourage you to incorporate State Transition Testing as a standard part of your quality assurance strategy to build more dependable and error-free software.
FAQs
1) What is state transition testing?
State transition testing is a black-box testing technique that checks how a system transitions between different states in response to specific inputs or events. It validates the system's behavior based on its current condition.
2) What is an example of a state transition?
In an ATM system, an example of a state transition is moving from the "Idle" state to the "Authenticated" state when a user enters a valid PIN. The valid PIN is the event that triggers the change.
3) What is the difference between decision table testing and state transition testing?
Decision Table Testing focuses on evaluating the output of a system for various combinations of input conditions. In contrast, State Transition Testing focuses on evaluating system behavior based on state changes triggered by events over time.
4) Is state transition testing a white-box testing?
No, State Transition Testing is a black-box testing technique. It focuses on testing the system's external behavior (inputs and resulting state changes) without any knowledge of its internal code structure or logic.
